At a glance: Chilled water low delta T means return water reaches the plant colder than the design intended, which cuts usable chiller capacity and drives extra pumping. This guide explains why it matters in Florida, the physical causes at coils, valves, and decouplers, how commercial chiller troubleshooting confirms the cause, which corrections remove it and which only mask it, what drives cost and schedule, how to do the work in an occupied building, the 2026 code and refrigerant dates, and a checklist assigned by role.
Chilled water low delta T is almost always a distribution problem, so a plant that shows it should be diagnosed from the cooling coils back toward the chillers before anyone prices another chiller. When return water comes back colder than the design intended, the chillers cannot load fully, the pumps move more water than the building needs, and operators bring a second or third machine online to carry a load the first could have handled, which is how owners end up funding chiller capacity they do not need or running a hospital or high-rise short of cooling on the hottest afternoon of the year. This article explains what low delta T is, what causes it, how commercial chiller troubleshooting confirms the cause, and which corrections hold up in occupied Florida buildings. It is not a plant design guide and makes no engineering determination for a specific building, which belongs to the mechanical engineer of record.
Why does chilled water low delta T matter for a Florida chiller plant?
Delta T is the temperature difference between the chilled water a plant sends out and the water that comes back, and a plant has low delta T when that difference runs well below its design value. The U.S. Department of Energy’s Hospital Energy Alliance chiller fact sheet, published in August 2011, notes that chillers are typically designed for a delta T of about 10°F to 12°F and that the difference tends to degrade as a system is expanded or modified over time. Florida Power & Light’s Business HVAC Program Standards, effective September 1, 2025, rate qualifying chillers at 44°F leaving and 54°F entering chilled water, a 10°F difference.
The consequence is physical. A chiller’s output depends on both the water flowing through its evaporator and the temperature drop across it, so when return water arrives only a few degrees warmer than the supply, the machine delivers only part of its rated capacity at design flow. The same DOE fact sheet states that systems with low delta T use more energy than necessary and deliver below their rated capacity. Raising pump speed or staging another chiller, the usual responses, pushes still more water through coils already receiving too much.
Researchers at Nanjing Tech University showed in a 2018 study in the journal Buildings that the delta T of a whole system is always lower than the delta T of its individual coils, because loads are unevenly distributed, and that the gap widens at low part load. In primary-secondary plants the same study describes deficit flow, where the secondary loop demands more water than the primary loop supplies, return water mixes into the supply, and the supply temperature climbs. Florida plants run at part load through most of a year-long cooling season, and a rising supply temperature also weakens the coils’ moisture removal.
What causes low delta T syndrome in a chilled water system?
Low delta T syndrome has two families of causes, which the Buildings study names heat transfer deterioration (fouled coils, reduced airflow, a supply temperature above design) and improper water flow (failed or oversized control valves, three-way valves, deficit flow at the bypass).
When a control valve opens wider than the load needs, water moves through the coil too quickly to absorb its share of heat and leaves only slightly warmer than it arrived. A three-way valve does the same by design at part load, routing chilled water around the coil into the return, and a leaking valve on an idle coil does it all night. Each sends cold water back to a plant that cannot distinguish a satisfied load from wasted flow.
Steven Taylor’s 2002 paper in ASHRAE Transactions, as summarized in the Buildings study, divides the causes into avoidable and unavoidable. Avoidable causes include improper setpoints, three-way valves, poorly selected coils and valves, and missing valve interlocks; unavoidable ones include coil fouling over time, economizers, and 100% outdoor air systems. Avoidable causes can be corrected; unavoidable ones have to be designed around. Routine coil and tower care, covered in chiller and cooling tower maintenance tips, slows fouling but does not stop it.
| Cause | What happens physically | Avoidable or unavoidable | Where to look first |
|---|---|---|---|
| Three-way control valves | Chilled water bypasses the coil and goes straight to the return at part load | Avoidable | Valve schedule and as-built drawings |
| Oversized, failed, or leaking two-way valves | The coil gets more water than its load needs, or water flows through coils that should be off | Avoidable | Valve position compared with coil leaving-water temperature in trend data |
| Supply-air setpoint the coil cannot reach | The valve drives fully open and stays open | Avoidable | Air handler setpoints and discharge-air trends |
| Mixing at a primary-secondary decoupler | Return water flows into the supply and the supply temperature rises (deficit flow) | Avoidable through design and controls | Decoupler flow direction and supply temperature downstream of it |
| Fouled coil fins or tubes | Heat transfer falls, so more water is needed for the same load | Unavoidable over time; slowed by maintenance | Coil inspection and air-side pressure drop |
| Economizer or 100% outdoor air operation | Coil entering conditions differ from the design case | Unavoidable | Operating mode schedule |

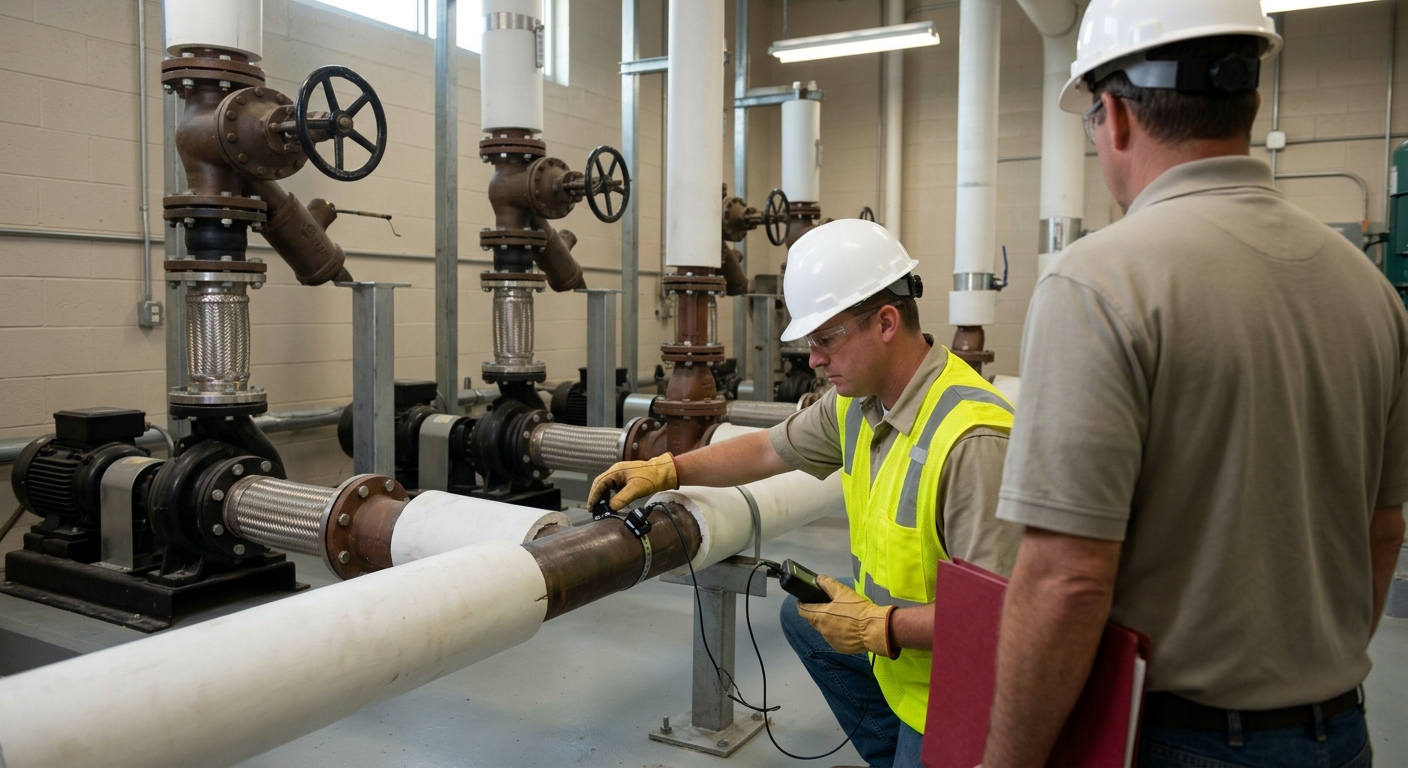

Confirming the cause of chilled water low delta T starts with trend data. Record supply and return temperature, loop flow, pump speed, and every coil valve position for several weeks of peak and part-load operation. Coils whose valves sit wide open while their leaving water stays cold are overflowing, and coils that pass water while their fans are off have leaking valves.
Which low delta T fixes are treatments, and which only mask the problem?
A measure that removes the cause of low delta T is a treatment, and a measure that hides the symptom is a fix, in the terms used by an Eindhoven University of Technology systematic review published in Energy and Buildings in December 2024. The review classified 25 published measures across four subclasses of low delta T syndrome and concluded that many measures reported as successful are fixes, because they mitigate signs and symptoms without addressing the cause.
A fix can be the right short-term call if it is bought knowing the cause remains. The table applies the review’s definitions to common options; the classifications are this article’s, for the engineer of record to confirm.
| Measure | What it does | Treatment or fix | Where it falls short |
|---|---|---|---|
| Replace three-way valves with two-way valves | Stops coil bypass flow at part load | Treatment | Pumps and controls must handle variable flow; minimum chiller flow must still be protected |
| Repair or replace leaking, oversized, or failed control valves | Matches each coil’s flow to its load | Treatment | Coil-by-coil access; valve selection is an engineering task |
| Clean coils and correct airflow | Restores heat transfer at the coil | Treatment | Fouling returns without a maintenance program |
| Correct setpoints and recalibrate sensors | Stops valves from driving wide open; removes false readings | Treatment | Setpoints drift without regular trend review |
| Differential pressure reset on secondary pumps | Lowers pump pressure at part load so valves are not forced open | Treatment for overpumping | Depends on reliable valve position data |
| Chilled water supply temperature reset | Raises supply temperature at part load to save chiller energy | Efficiency measure; does not cure low delta T | Can raise pump flow through coils already overflowing; limits dehumidification |
| Check valve in the decoupler | Blocks reverse flow from return to supply | Fix | Leaves overflowing coils in place; plant hydraulics need engineering review |
| Stage an extra chiller or add capacity | Meets the load by moving more water | Fix | Most expensive response; delta T stays low |
Two sourced results show why the classification matters. In a Hong Kong building cited by the Buildings study, adding a check valve in the bypass line cut combined chiller and secondary pump energy by about 9.2%, a real result from one building and still a fix in the review’s terms. Pacific Northwest National Laboratory’s building re-tuning guidance for central plants recommends a chilled water supply temperature reset, raised 0.5°F at a time, but warns that raising supply temperature can increase secondary pump power and says to bring the setpoint back toward design if pump speed rises above 80%.
No correction makes a plant immune to low delta T. Coils foul and loads shift, so delta T has to be watched after the work, and a building that has outgrown its plant may still need more chiller capacity once distribution faults are corrected. Repeated compressor failures on an end-of-life chiller point toward replacement regardless. A small single-chiller building rarely needs a plant study; a careful service visit may be enough. Advanced Air Systems’ chiller and cooling tower services cover repairs, maintenance, and replacements, and valve and controls corrections are scoped as commercial air conditioning retrofits.
What drives the cost and schedule of correcting low delta T?
The cost of correcting low delta T is set mostly by how many coils and valves are involved and how much the building automation system already records. Advanced Air Systems does not publish pricing, and published figures rarely state their assumptions, so each proposal should price the drivers below separately.
| Driver | Why it moves cost or schedule | How to pin it down before award |
|---|---|---|
| Trend data already available | Missing points mean temporary loggers and a longer diagnosis | Point list reviewed; logging period stated |
| Flow measurement | Without flow meters, delta T cannot be tied to load | Meter type and locations stated |
| Number of coils and valves | Each valve replacement is a separate isolation, drain, and refill | Valve count and access method per coil |
| Valve lead time | Specialty and pressure-independent valves can have long lead times | Lead time stated per valve type |
| Controls programming | Reset sequences and interlocks need programming and testing | Sequence of operations attached to the proposal |
| Shutdown windows | Isolating coils in an occupied building limits work hours | Work windows agreed with property management |
| Rebalancing and verification | Flows change once faults are corrected | Test and balance and trend verification included |
Operational corrections usually cost less than construction. PNNL’s measures are made in the building automation system; valve replacement and repiping need crews, isolation, and refill. Savings estimates for supply temperature reset differ by source: PNNL cites about 2% chiller efficiency gain per degree of supply temperature rise, while the DOE fact sheet, citing Lawrence Berkeley National Laboratory, gives 0.5% to 0.75% per degree for fixed-speed chillers and 2% to 3% for variable-speed chillers. The difference is the compressor drive, so the plant’s own equipment decides which figure applies.
FPL’s program standards list high-efficiency chillers and variable frequency drives on HVAC pumps among eligible measures. FPL sets eligibility and amounts and guarantees no savings, so treat any rebate as a possible offset. Where delta T work is part of a broader program, commercial HVAC energy efficiency upgrades sets out what to fix first.
What changes when the chiller plant serves an occupied Florida building?
In an occupied building, diagnosis comes before any shutdown, because most of the evidence for low delta T sits in trend data collected while the plant runs. Several weeks of trends usually narrow the cause to specific air handlers. Corrections are then scheduled coil by coil, with temporary cooling or an after-hours window for each space and notice to the property manager before every shutdown.
Florida adds two constraints. Supply temperature reset has less room here, because the DOE fact sheet cautions that relative humidity must stay within requirements as chilled water temperature rises, and a building that dehumidifies with its chilled water coils can lose moisture removal before it loses sensible cooling. Hospitals and laboratories need the engineer to set reset limits against their humidity requirements. The Atlantic hurricane season runs through November 30, as noted on Advanced Air Systems’ hurricane season resource page, so work that drains loops during the season needs a written plan to restore full operation quickly if a storm approaches.
Advanced Air Systems is a division of Advanced Roofing Inc., and its in-house crane, sheet metal, and roofing divisions let one team coordinate a rooftop chiller or tower pick, curb and penetration work, and the hydronic corrections. After the work, the verification steps in commissioning after a retrofit apply to a delta T project as much as to new equipment.
Which code, refrigerant, and utility dates affect chiller plant work in Florida?
As of October 2026, two calendars affect chilled water plant projects. The Florida Building Code, 9th Edition (2026) takes effect December 31, 2026, and Miami-Dade County’s notice on the 9th Edition states that permit applications and plans submitted on or after that date must comply with the new edition. Whether a given scope needs a permit, and under which edition, is for the building official and engineer of record.
For refrigerants, EPA’s Technology Transitions reconsideration rule, published May 26, 2026 and effective July 27, 2026, changed compliance dates for chillers only where they serve industrial process refrigeration in semiconductor manufacturing. New comfort-cooling chillers remain under the 2023 rule’s limits, so an owner who concludes the plant does need another chiller should confirm the refrigerant requirements on EPA’s sector table on the day of purchase. The 2023 rule did not prohibit components needed to repair existing systems.
Commercial chiller troubleshooting checklist: who owns each step?
- Facility director or chief engineer: Trend temperatures, flow, pump speed, and coil valve positions for several weeks; record the design delta T; list every three-way valve and every valve sitting fully open at part load.
- Controls contractor: Confirm sensor calibration, supply-air setpoints, valve interlocks with fan status, and any existing reset sequences.
- HVAC service contractor: Inspect and clean coils, test suspect valves for leak-by, and report coil and valve condition by air handler.
- Mechanical engineer of record: Review pumping and the decoupler, select valves, and set reset limits against humidity requirements.
- Owner or asset manager: Fund treatments before fixes, and write a delta T and flow target into the scope with trend verification after the work.
- Property manager: Approve work windows, temporary cooling, and tenant notices.
- Owner: Keep delta T on the monthly operating report through a preventive maintenance program so drift is caught early.
Frequently Asked Questions
What is a good delta T for a chilled water system?
Many chilled water systems are designed for a delta T of about 10°F to 12°F, according to the U.S. Department of Energy’s Hospital Energy Alliance, and some newer plants are designed higher. The right target for a specific building is the design value on its drawings and equipment schedules. A plant that runs well below that value at part load, after allowing for uneven loads across coils, is a candidate for investigation.
What causes low delta T in a chiller plant?
Low delta T comes from coils that transfer too little heat or receive too much water. Common causes are three-way valves, leaking or oversized two-way valves, supply-air setpoints the coil cannot reach, mixing at a primary-secondary decoupler, and fouled coils. Economizers and 100% outdoor air units can also lower delta T as a normal result of how they operate, which is why the design should account for them.
Can low delta T be fixed without replacing the chiller?
In most plants the chiller is not the cause. Low delta T usually starts at the coils, valves, and controls, so correcting them restores delta T without touching the chiller. A new chiller connected to the same distribution system inherits the same low delta T. Replacing a chiller is a separate decision based on its condition, efficiency, and remaining service life, made by the owner with the engineer of record.
Does raising the chilled water temperature fix low delta T?
Not by itself. A chilled water supply temperature reset saves chiller energy at part load, but Pacific Northwest National Laboratory’s re-tuning guidance warns that it can increase secondary pump power, and coils that already overflow will draw more water. In Florida the reset is also limited by dehumidification. Treat it as an efficiency measure applied after valve and setpoint faults are corrected.
Is low delta T covered by routine chiller maintenance?
Routine chiller maintenance focuses on the chiller and cooling tower, while low delta T usually starts at coils, valves, and controls elsewhere in the building. A maintenance program that cleans coils, tests valves for leak-by, and reviews delta T trends every month catches drift early. Confirm that your service agreement covers air handlers, coils, valves, and controls in addition to the plant equipment.
Fixing chilled water at the coils before adding chiller capacity
Low delta T means water is returning to the plant without carrying its share of heat, and the evidence nearly always points into the building: overflowing valves, fouled coils, setpoints that hold valves open, and decouplers that mix return into supply. Trend data shows which a plant has. Treatments at the coils and controls restore capacity the chillers already have, while plant-side fixes buy time and leave the cause in place, an order of work Florida’s humidity limits make more important. Owners in Broward County can find local service details on the commercial HVAC contractor in Fort Lauderdale page, and Miami-Dade owners on the commercial chiller service in Miami page.
